OJAS is the creative pen name of Devon Turnbull. As a university student studying Audio Engineering he started using the name across a variety of disciplines including graffiti, music, graphic design and clothing design. In 2003 Turnbull co-founded the clothing brand Nom de Guerre with Isa Saalabi, Wil Whitney and Holly Harnsongkram. For the next decade, while primarily working in fashion, the name OJAS was kept alive on sound sculptures Turnbull was crafting for himself and a growing number of audio enthusiasts around the world. With a particular interest in high efficiency speakers and low powered tube amplifiers, Ojas audio equipment aims to bring realistic, natural sound to the listener. These products are the result of two decades of experimentation, engineering and explorations in the audio underground.
ojas-art

The Nature of Sound


Sound is considered to be of two kinds, one a vibration of ether the other a vibration of air.
The vibration of ether which cannot be perceived in the physical sense, is considered the principle of all manifestation the basis of all substance the “music of the spheres” it forms permanent numerical patterns which are the basis of the worlds existence, this kind of vibration is not caused by physical shock as are audible sounds. It is therefore called anahata “unstruck”, the other kind of sound is an impermanent vibration of air, an image of the ether vibration. It is audible and always produced by a shock. It is therefore called ahata or “struck”.
Struck sound is said to give pleasure. Unstruck sound leads to liberation (Narada Purana).
back to canary---yellow

Klipsch/OJAS kO-R2 "Pre-Order"

$11,995.00
$11,995.00
Passive 3-way horn system — OJAS 620B bass reflex & 1508/802 horn stack
$11,995.00
$11,995.00

LOT01-SpiralOak

Details

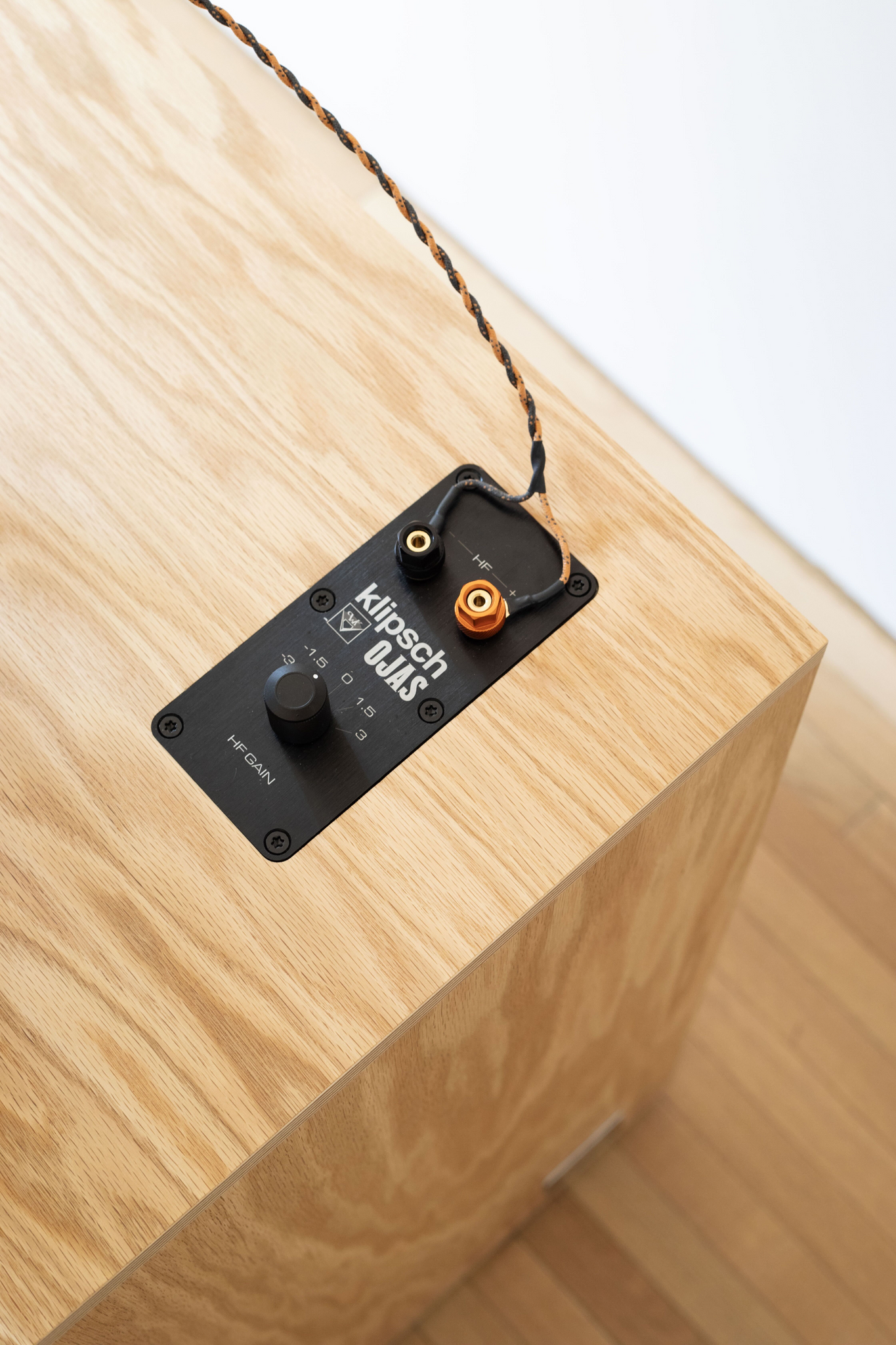

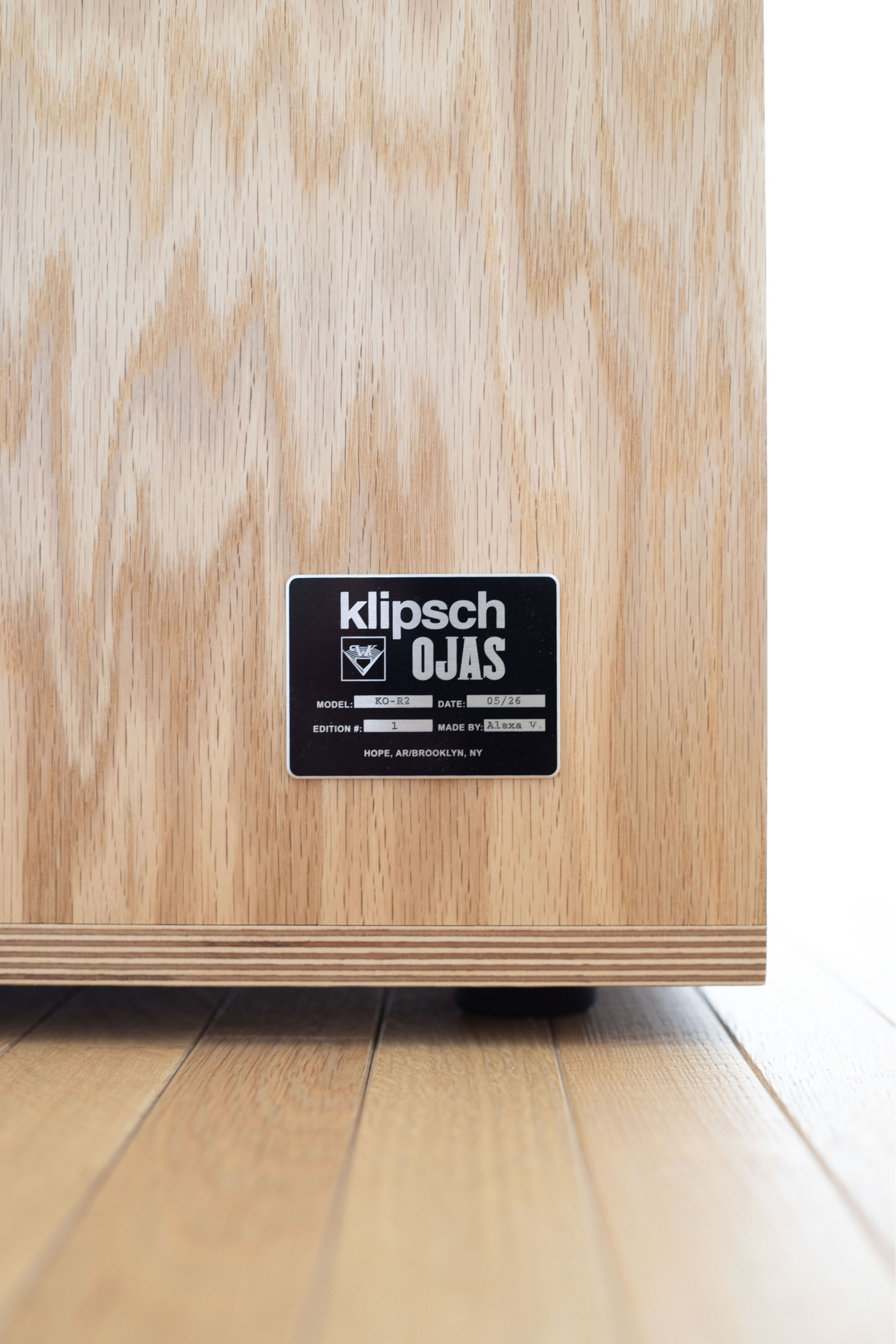

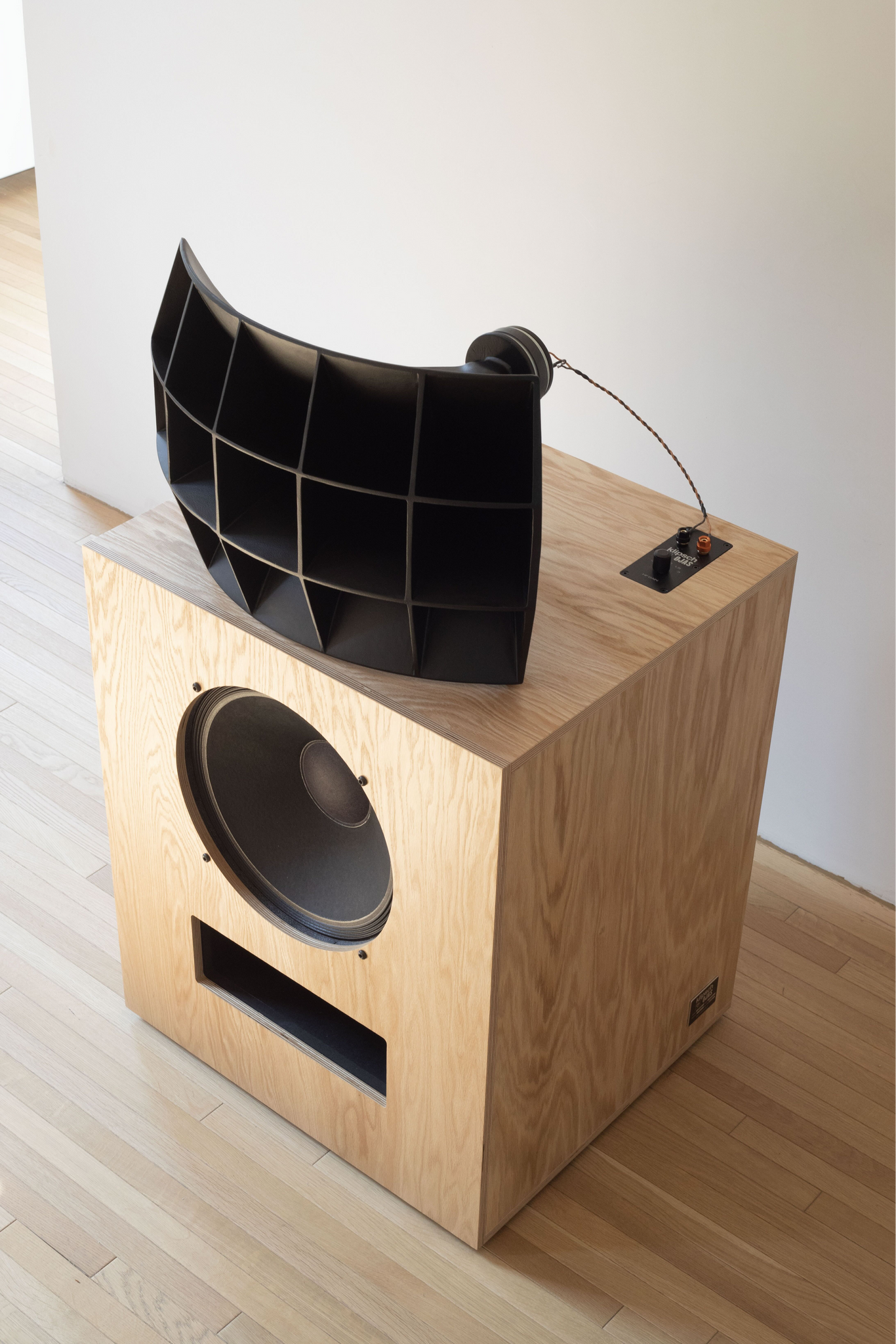

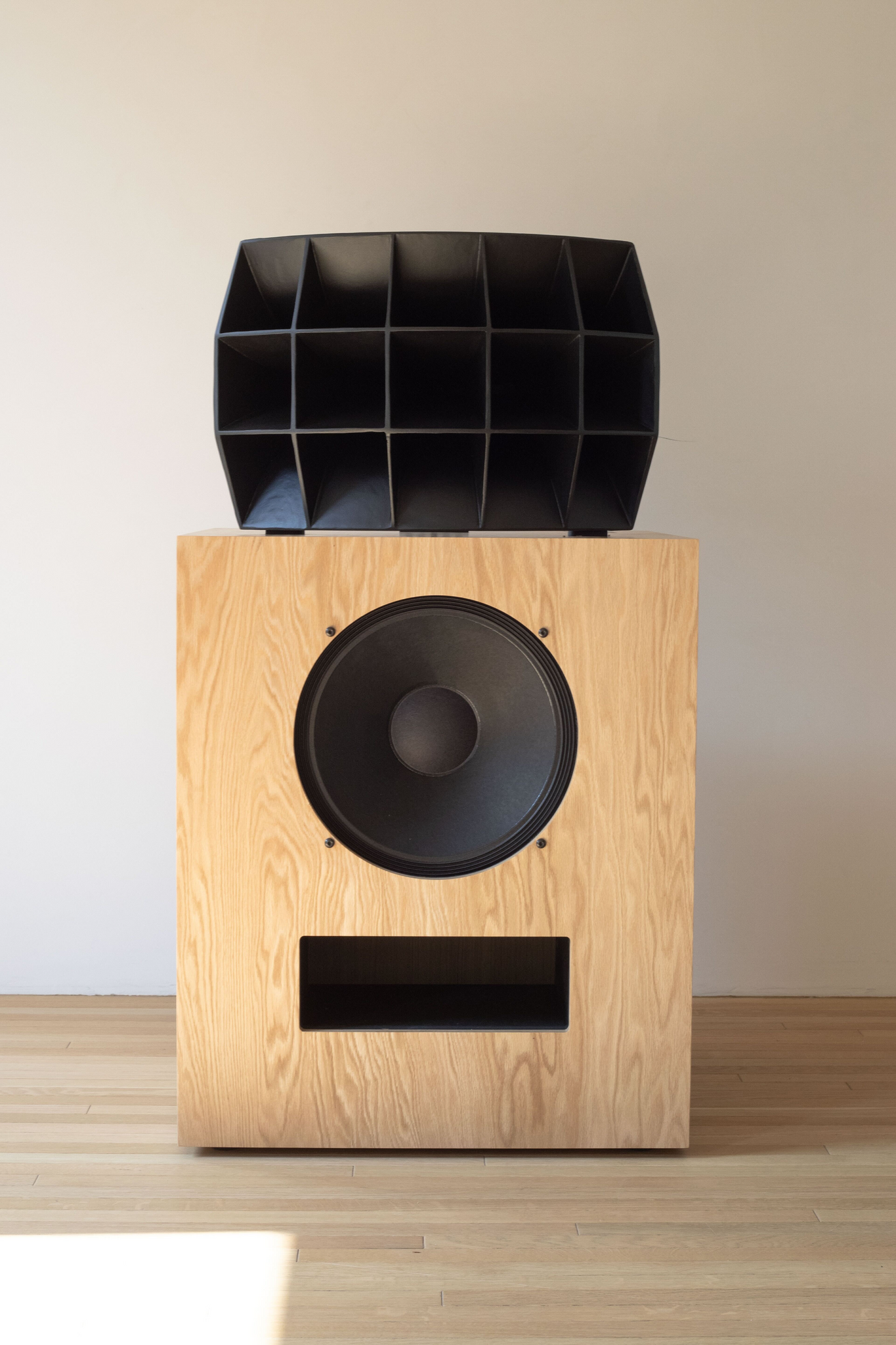

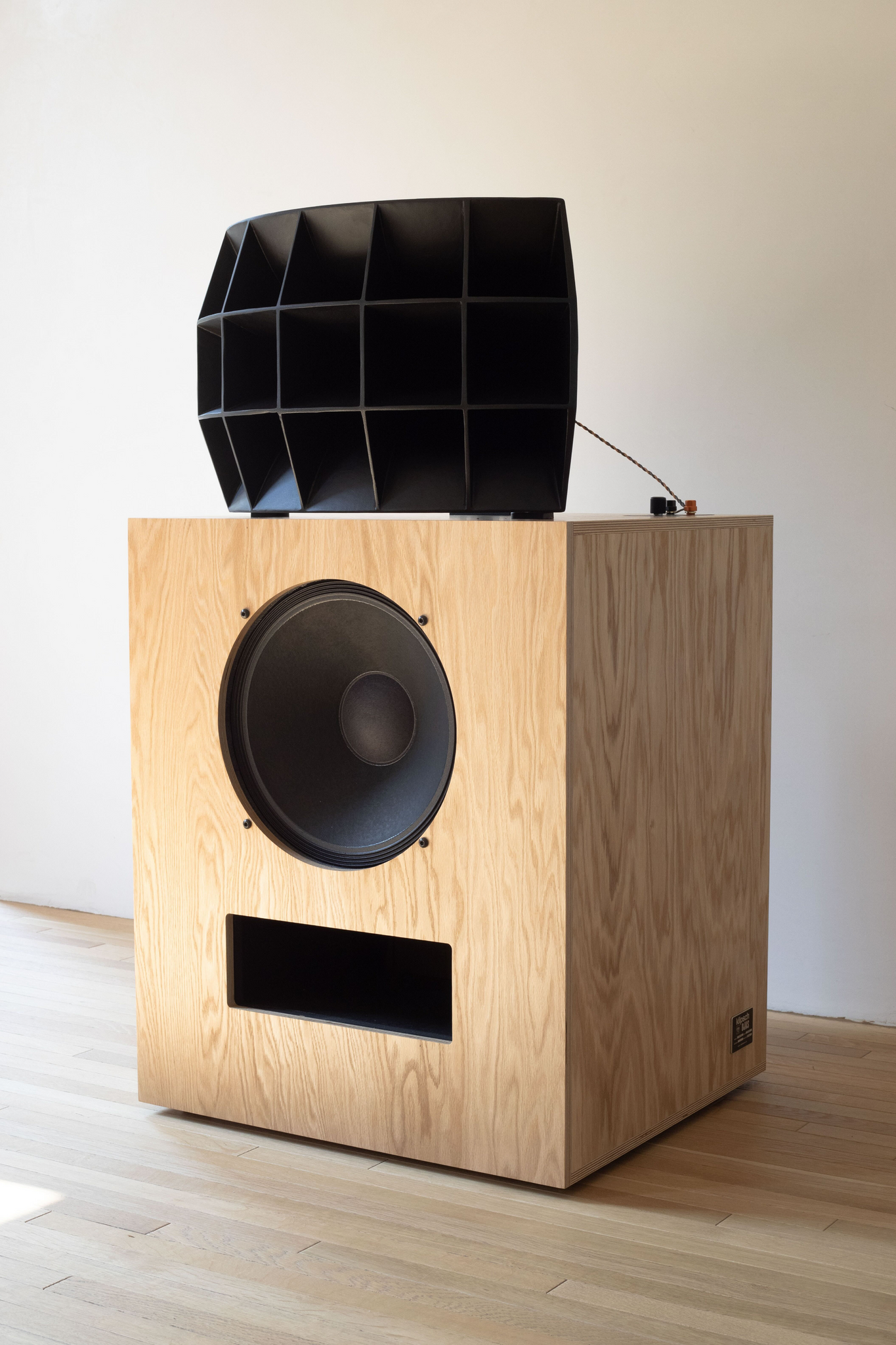

The Klipsch Ojas kO-R2 is a passive 2-way loudspeaker, featuring the Ojas 1506 Multisectoral horn. Handcrafted in Hope, Arkansas, USA by Klipsch artisans, designed in collaboration with OJAS. Built from 13-ply Grade A Baltic birch plywood the cabinet houses the K-33-E 15” woofer in a vented enclosure, crossed over at 760Hz to the K-706 HF compression driver loaded on an exposed sand cast aluminum multi-sectoral horn. Features include anodized aluminum binding posts, anti-vibration rubber feet, an engraved metal ID plate, and a five-step high-frequency HF gain attenuator.



Available in pairs of spiral red oak veneer or Hammertone Gray finish with a matte black horn. The price is per pair.



The kO-R2 is available for pre-order, shipping between August and October, in the order they were received. We are producing and shipping in four lots, which will ship approximately 3 weeks apart. Following purchase, customers will receive an order confirmation with their lot number (1-4) and be added to a dedicated production update sequence, with communications covering (in this approximate order) the receipt of the horns in Hope AR, crossover build completion, cabinet construction, assembly, final acoustical testing, shipping, and setup guidance upon arrival. Our goal is for you to know as much as we do about the status of your speaker build.


Frequency Response: 39Hz – 20kHz ±3dB

Frequency Response: (f10): 29 Hz - 21kHz -10dB

Power Handling: 300W (34.6V) 40 Hz - 10kHz

Calculated Max. Continuous Output: 118db 40 Hz - 10kHz

Sensitivity: 97dB sensitivity at 2.83V/1m

Crossover Point: 760 Hz

Horizontal Coverage Pattern: 90 degrees, +/- 30 degress, 500Hz to 20kHz

Vertical Coverage Pattern: 70 degrees, +/- 20 degress, 3kHz to 20kHz

Nominal Impedance: 8 ohm (4.2 ohm min. @ 100 Hz)

Transducers: K-33-E 15” Woofer; K-706 HF Driver

Enclosure: vented system

Enclosure Material: 13-ply Grade A Baltic Birch Plywood

Terminals: 5 way binding posts

Dimensions: 25.375” (64.45cm) W x 45.5” ( 115.5cm) H x 22.25” (56.5cm) D

Net Weight: 120.5 lbs. (54.65kg)

Shipping Weight: 134 lbs (60.78kg)
